Best Heating System Expansion Tank Options for Reliable Hydronic Control
When expanding a closed-loop heating system, selecting a compatible expansion tank is essential for maintaining pressure, preventing leaks, and ensuring long-term reliability. This guide highlights five top choices, from pre-charged steel tanks to inline Extrol options and supportive mounting kits. Best for homeowners upgrading residential systems, contractors reinforcing commercial loops, and DIY installers seeking straightforward, durable setups.
The following quick-reference table helps compare core specs and intended use. Values reflect common capabilities and mounting notes drawn from product features.
| Product | Volume | Best For | Mount/Connection |
|---|---|---|---|
| Watts ETX-30 | 4.5 gal | Small to mid-size closed-loop systems | 1/2″ MNPT |
| AMTROL 102-1#30 EX-30 | 30 gal (extrol tank) | Larger or high-demand systems | Inline well tank style |
| EFIELD 2.1 Gallon | 2.1 gal | Compact residential installs | 3/4″ MNPT |
| CHOWZZ Expansion Tank Strap Kit | Mounting hardware | Securing tanks up to 80 gal | Wall/stand mounting |
| Watts ETX-90 | 6 gal | Mid-to-large closed loops | 1/2″ MNPT |
Watts ETX-30 4.5 Gal Carbon Steel Expansion Tank
The Watts ETX-30 is a 4.5-gallon carbon steel expansion tank designed for closed-loop hydronic heating systems. It features an epoxy finish and a durable expansion membrane to minimize air-charge loss and extend service life. The tank mounts directly to supply piping with a 1/2″ MNPT connection and a standard tire-valve style charging valve for on-site charging.
Best for: small to mid-size residential or light commercial loops needing reliable thermal expansion control without taking up excessive space. This tank is well-suited for setups where a compact, pre-charged option is preferred.
Caution: Ensure proper charging pressure matches the system’s operating pressure to avoid premature membrane wear. The 4.5-gallon size may be undersized for very high-temperature or high-flow scenarios.
AMTROL 102-1#30 EX-30 30 Extrol Expansion Tank
The AMTROL EX-30 is a large inline well tank designed to absorb expanded water in closed-loop systems. It relies on a thick, durable diaphragm (Butyl/EPDM) to provide long service life and reliable pressure control. This unit is presented as a robust option for higher-volume or more demanding installations that require substantial storage capacity to prevent pressure spikes.
Best for: upgrades or new builds with heavier flow and higher thermal expansion needs, where a larger reservoir helps stabilize system pressure over time.
Caution: installation may require more space and a thoughtful integration with existing piping due to its larger footprint and diaphragmed design.
1PC EFIELD Water Heater Expansion Tank, 2.1 Gallon
The EFIELD 2.1-gallon tank offers a compact solution for household water heaters and small plumbing systems. It features a 3/4″ MNPT connection for straightforward installation and is certified for potable water use, ensuring safety for domestic supply lines. The unit aids in absorbing excess thermal pressure and maintaining steady system operations.
Best for: households or apartments needing a space-saving expansion tank with potable-water compatibility and simple installability.
Caution: Smaller capacity may require more frequent charging or replacement in high-temperature applications or rapid heat-up cycles.

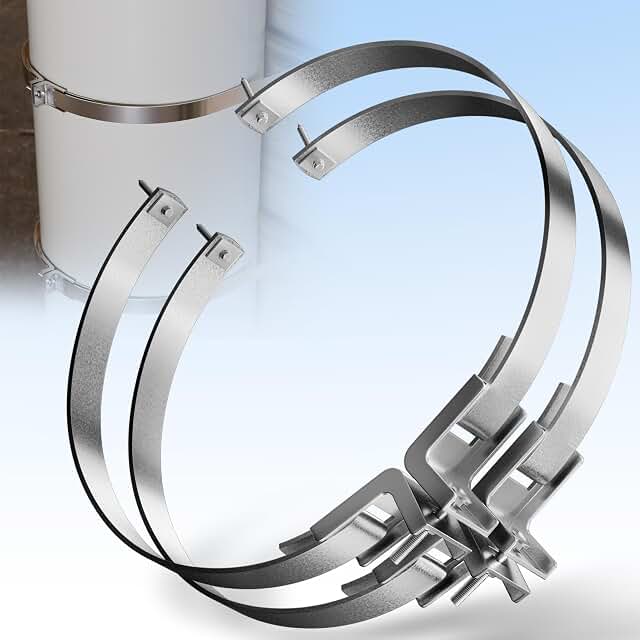

CHOWZZ Universal Water Heater Earthquake Strap Kit
This kit offers expansion tank mounting straps and a stand adaptable to tanks up to 80 gallons. It emphasizes safety by securing tanks to walls, reducing risk from earthquakes, high winds, or accidental impacts. The straps are adjustable to fit various diameters and can accommodate larger tanks with customized trimming.
Best for: installations where wall-mounted or stand-mounted expansion tanks need extra stability and safety considerations, especially in earthquake-prone areas.
Caution: proper selection and cutting are required for sizing to smaller tanks; ensure straps grip firmly without over-tightening the tank housing.
Watts ETX-90 6-Gallon Non-Potable Expansion Tank
The Watts ETX-90 is a 6-gallon non-potable expansion tank designed for closed-loop hydronic heating systems. It’s pre-charged at 12 psi and mounted to the supply piping via a 1/2″ MNPT connection. The carbon steel body with epoxy finish offers durability for longer service life, supporting regular system expansion and pressure control needs.
Best for: mid-to-large residential or light commercial loops that require higher storage capacity and reliable pre-charge for quick system stabilization.
Caution: verify that system pressure aligns with the tank’s pre-charge to avoid suboptimal charging and membrane wear over time.
Buying Guide
What size expansion tank do I need?
Choose based on system volume, maximum operating pressure, and the thermostat’s heat-up rate. Larger homes or systems with higher water temperatures often require bigger tanks to keep pressure stable during thermal expansion.
Should I choose a pre-charged or inline tank?
Pre-charged tanks simplify setup and reduce on-site charging effort. Inline/external diaphragm tanks may be better for high-flow systems or when space constraints exist and mounting options are flexible.
What material is best?
Carbon steel tanks with epoxy finishes offer durability and corrosion resistance for most residential and commercial closed-loop systems. Diaphragm integrity (Butyl/EPDM) is key for long-term performance.
How important are mounting options?
Secure mounting prevents movement and potential leaks. Earthquake straps or mounting brackets are advisable in regions with seismic activity or high wind exposure.
What about potable water compatibility?
If the system handles drinking water or potable protection is required, ensure the tank is certified for potable use and meets local plumbing codes.
Installation considerations
Confirm thread size (MNPT) and available space for the tank’s dimensions. Provide adequate clearance for maintenance and charging valves if present.
Special scenarios
For very large or complex systems, consult a plumbing professional to balance tank size with pump curves and boiler load to optimize overall efficiency.
FAQ
- What is an expansion tank used for? It absorbs the expansion of heated water in a closed-loop heating system, helping maintain stable pressure and protect valves.
- Can I install an expansion tank myself? Yes, if you follow the manufacturer’s connection sizes and pressure ratings, and shut off the system safely before work.
- Is a larger tank always better? Not necessarily. Oversized tanks can take up space and cost more without added benefit if your system doesn’t demand it.
- Do tanks need regular charging? Pre-charged tanks may require periodic recharging to maintain the correct air charge, depending on usage and temperature cycles.
- Are these tanks suitable for potable water systems? Some are certified for potable use; verify the product’s certification if drinking water is involved.
- How do I know which tank fits my piping? Check the MNPT connection size and the space available for mounting on your supply line.
